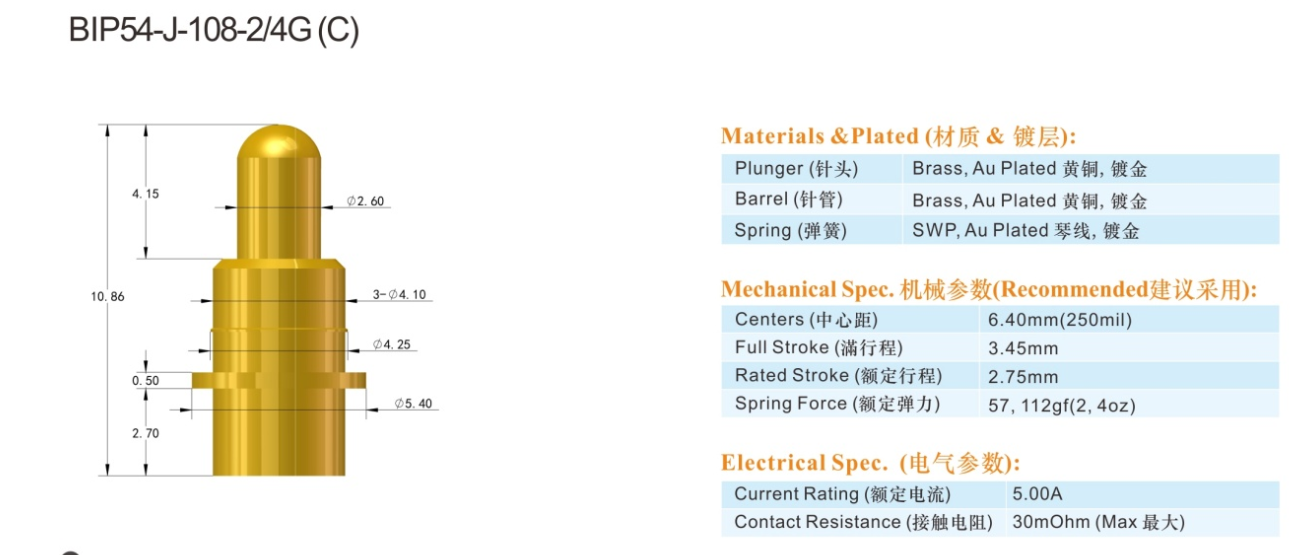

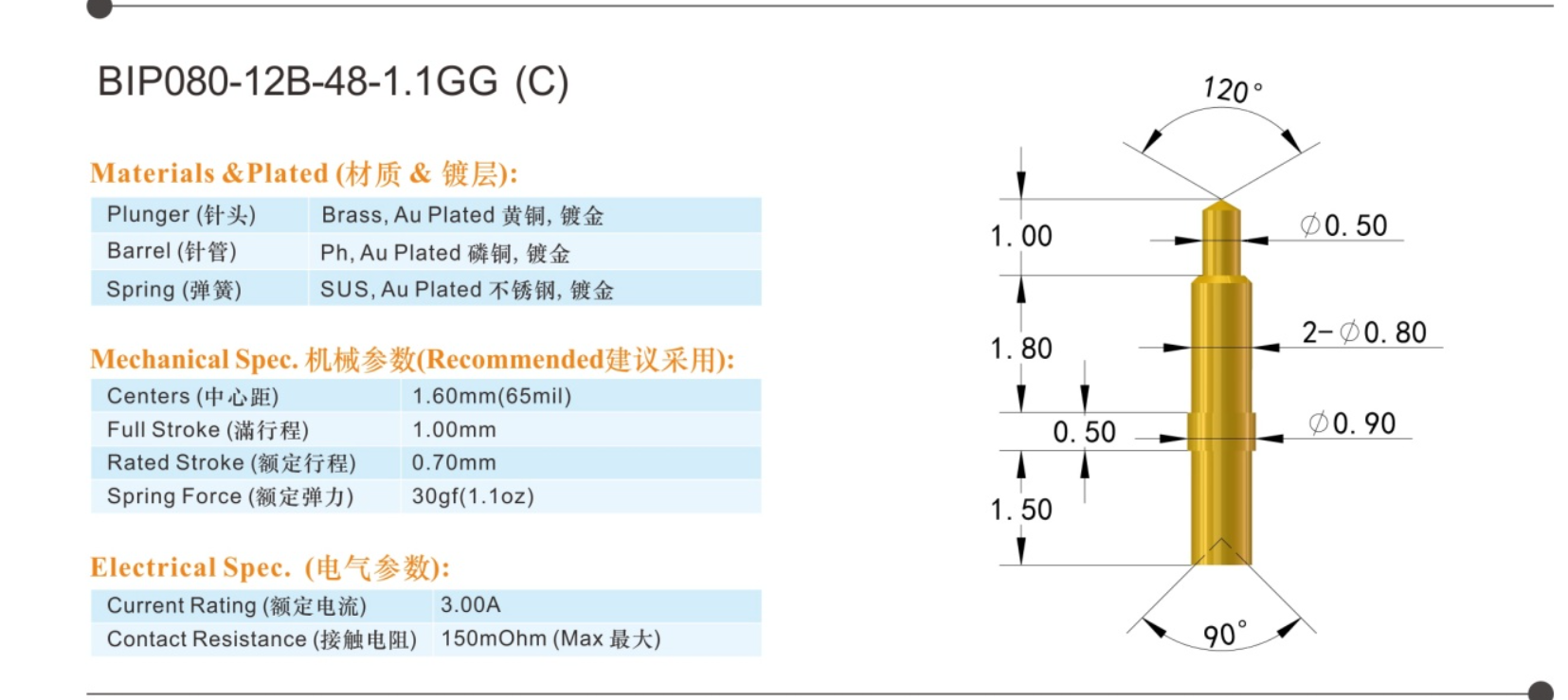

BIP54
Product Introduction: The charging pin is also known as “pogopin.t is mainly used for charging conduction testing of components such as smarthomes, smart wearables, and automotive electronics.The charging pin belongs to functional pins, it is not intended for testing purposes but primarlyserves to connect and conduct electricity, featuring good conductivity, low resistance, and high stability. -
SCFB038
SCFB038 Series
ProductParameters
Materials & Plated:
Needle Tube (Barrel): Ph, Au on Ni Plated
Needle 1 (Plunger): SK4/Becu, Auon Ni Plated; PD, No PlatedNeedle 2 (Plunger): SK4/Becu, Au on Ni Plated; PD,No PlatedSpring (Spring): SWP /SUS, Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 3 Amps
Bandwidth: -1 dB @ 13.1 GHzInductace (Inductace):1.20 nHCapacitance:1.55 pF
ProductIntroductior
nign est ctort ehen n ltucuranl ae d. auarea mingl ao rbe cnel uon ad doube ation pro esth eml volume and
Mainly used for extremely low contact resistance and utra -high bandwidth in various communication power electronic components,semiconductor wafertesting, chip packaging testing, etc, meeting requirements for 5-40G high-frequency signal testing.
Currently, Xindeli can process small probe diameter: head p: 0.06 mm / needle tube q: 0.10 mm.
-
PT018
PTo18 Series
ProductParameters
Materials & Plated:
Needle Head (Plunger): Becu/SK4, Au on Ni PlatedNeedle Tube (Barrel): Ph / Br, Au on Ni PlatedSpring (Spring): SWP / SUS, Au on Ni PlatedNeedle Sleeve (Casing): Ph / Br, Au on Ni Plated
Electrical Specifications:
Pitch (Pitch):0.46 mm (18 mil)
Frontal Fixed Current (Rated Current): 0.3 Amps, Continuous
Rated Resistance (Rated Resistance): 250 mO
Mounting Hole Size:0.40 mm
Rated Stroke: 1.0 mmRated Elasticity (Rated Force): 20 gf (0.7 oz)
Productntroduction
PCB spring pins are mainly used for testing PCB boards by comparing resistance or capacitance between lines and across lines to detectdefects such as line continuity. Typically. PCB spring pins are used with needle sleeves needle sleeves can be divided into those with tailsconnected to wires and those without wires. -
SCPA035
SCPA035 Series
ProductParameters
Materials & Plated:
Needle Tube (Barrel): Ph/SP, Au on Ni Plated
Needle 1 (Plunger): SK4 / Becu, Auon Ni Plated; PD, No PlatedNeedle 2 (Plunger): SK4/ Becu, Au on Ni Plated; PD, No PlatedSpring (Spring): SWP /SUS, Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 3 Amps
Bandwidth: -1 dB @ 14.8 GHz
Inductace (Inductace): 1.25 nH
Capacitance (Captance):1.63 pF
ProductntroductionSemiconductor test probes are also known as dualhead probes.Commonly used intemal needle types indude B,JJ,U, U1,et, with smallvolume and hightest accuracy requirements.Structurally divided into: dual-head – single-action probe series,dual-head double-action probe series.
Mainly used for extremely low contact resistance and utra-high bandwidth in various communication power electronic components,semiconductor wafer testing, chip packaging testing, etc, meeting the requirements of 5-40G high-frequency signal testing.
Currently, Xindeli can process small probe diameter: head: 0.06mm /needle tube q: 0.10mm. -
SWP165
SWP165 Series
ProductParameters
Materials & Plated:
Needle 1 (Plunger): BeCu, Au on Ni PlatedNeedle Tube (Barrel): Brass, Au on Ni PlatedNeedle 2 (Plunger): BeCu, Au on Ni Plated
Part: PTFE
Spring (Spring): SWP, Au on Ni Plated
Electrical Specifications (Electrical Spec):
Frontal Static Current (Current Rating): 17A (30s)/10A (300s)
Contact Resistance: 160 mil ohms
Technical Specifications:
Full Stroke: 5.0 mm
Rated Stroke: 3.3 mm
Rated Spring Force (Spring Force): 100 gf @ load 3.3 mm
Normality Condition: Pin 1,2 Open
Press Down: Pin Rod 1,2 Conductive (Press Down 1.5mm)
Product
ntroductionequpent automaton fields. er prout standards and regquiremens eced tose ofoter sees test pins.pes of haes pinstreaded nonthreaded harness pins, harness switch pins, harness – high-current pins, etc. -
Series 6.60×2.0×0.06
Series 6.60×2.0×0.06
ProductParameters
Materials & Plated:
Material (Material): Ni Alloy
Coating layer (Plated): Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 1.5 Amps
Contact Resistance: 100 mO
Technical Specifications:
Thickness (Thickness):0.06 mm
Full Stroke: 0.60 mmRated Stroke: 0.20 mmRated Force: 50/65 gfLife Cycle: 400,000 cycles
-
PCM350-461 Series
PCM350-461 Series
ProductParameters
Materials & Plated:
头(Plunger): BeCu/SK4, Au PlatedNeedle Tube (barrel): Brass, Au Plated
Spring (Spring): SUS, No Plated
Needle Sleeve (Receptacle): Brass, Au Plated
Electrical Specifications:
Current Rating:<50A (at room temperature)
Contact Resistance (Contact Resistance): < 10mO
Technical Specifications:
Centers:5.08 mm (200mil)
Full Stroke: 8.50mm
Rated Stroke (Rated Stroke):7.40mm
Rated Spring Force: 10.6oz-3000gf/17.6oz-500gf/35.3oz-1000gf
Temperature / Installation Aperture:
温度(Temperature):-100°~ +200°C
Used for RCM350-461-SC_A epoxy glass cloth low base plate and epoxy resin material: 3.99mm
For RCM350-461-SC/RCM350-461-M epoxy glass cloth paper-based sheets and epoxy resin materials: 4.00-4.02 mm -
SCPA016
Ni Plated
Needle 1 (Plunger): SK4 / Becu, Auon Ni Plated; PD, No PlatedNeedle 2 (Plunger): SK4 / Becu, Auon Ni Plated; PD, No PlatedSpring (Spring): SWP / SUS, Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 4 Amps
Bandwidth: -1 dB @ 7.5 GHz
Inductace (Inductace): 1.45 nH
Capacitance (Captance):1.95 pF
ProductIntroduction
olume and nighest acura requremens. structural ided inte: dua head – singe -acion probe, dual head – double- action probe seles.
Mainly used for extremely low contact resistance and ultra-high bandwidth in various communikcation power electronic components, semiconductorwafer testing, chip packaging testing, etc, meeting the requirements for high-frequency signal testing at 5-40G.
Currently, Xindeli can process small probe diameter: head: 0.06mm /needle tube p: 0.10mm.
-
SCPA035
SCPA035 Series
ProductParameters
Materials & Plated:
Needle Tube (Barrel): Ph / SP, Au on Ni Plated
Needle 1 (Plunger): SK4/Becu, Au on Ni Plated; PD, No PlatedNeedle 2 (Plunger): SK4 / Becu, Au on Ni Plated; PD, No PlatedSpring (Spring): SWP /SUS, Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 3 Amps
Bandwidth: -1 dB @ 14.8 GHz
Inductace (Inductace): 1.25 nH
Capacitance (Captance):1.63 pF
ProductIntroduction
Semiconductor test probes are also known as dual head probes” Commonly used intemal needle typesincude B,JJ1,,U1,etc, with small volume and hightest accuracy requirements. Structurally divided into: dual-head single-action probe series,dual-head double-action probe series.
Mainly used for extremely low contact resistance and ultra-high bandwidth in various communication power electronic components,semiconductor wafer testing, chip packaging testing,etc, meeting the requirements of 5-40G high-frequency signal testing.
Currently, Xindeli can process small probe diameters: head p: 0.06mm/needle tube p:0.10mm. -
SWP 165
SWP165 Series
ProductParameters
Materials & Plated:
Needle 1 (Plunger): BeCu, Au on Ni PlatedNeedle Tube (Barrel): Brass, Au on Ni PlatedNeedle 2 (Plunger): BeCu, Au on Ni Plated
Part:PTFE
Spring (Spring): SWP, Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 17A (30s)/10A (300s)
Contact Resistance: 160 milohms
Technical Specifications:
Full Stroke: 5.0 mm
Rated Stroke: 3.3 mmRated Spring Force (Spring Force): 100 gf @ load 3.3 mmNormality Condition: Pin 1 and 2 disconnected
Press Down: Pin Rod 1,2 Conductive (Press Down 1.5mm)
Productntroduction
Harness pins are mainly used for automotive hamess testing and drect use;some products also apply to communication electronics,medical devices.equipment automaton fields. Thelr product standards and requirements exceed those of other seres test pins. Types of harness pins. threadednon-threadedharness pins,ect -

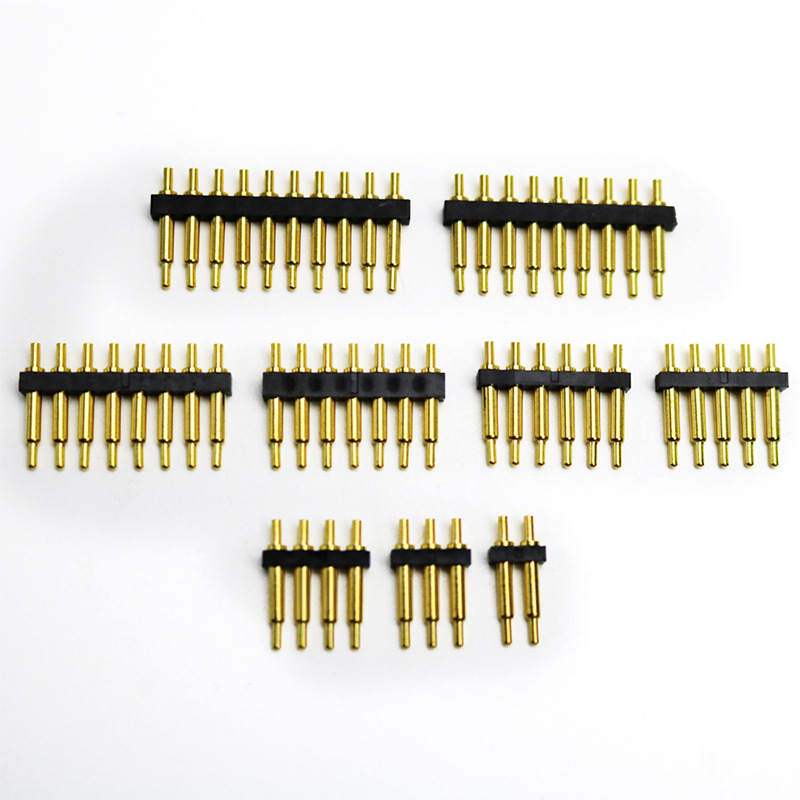

DIP type
BIP095 Series
ProductParameters
Materials & Plated:Plunger: BuCu, Au Plated Copper, Gold PlatingBarrel: Brass, Au Plated Brass, Gold-platedSpring: SUS, Au Plated Stainless Steel, Gold Plating
Mechanical Specifications (Recommended):Centers: 1.65mm(65mil)Full Stroke (Full Stroke): 2.00mm
Rated Stroke: 1.30mmRated Spring Force: 180gf (6.3oz)
Electrical Parameters:Frontal Static Current (Current Rating): 1.00A
Contact Resistance: 100 mO -
megnetic charging cable
BIP170 Series
ProductParameters
Materials & Plated:
Plunger: BeCu, Au Plated Copper, Gold PlatingBarrel: PH, Au Plated Phosphor Bronze, Gold Plated
Spring: SWP, Au Plated Wire, Gold Plating
Mechanical Specifications (Recommended):Center Distance (Centers): 3.20mm (125mil)
Full Stroke: 3.50mmRated Stroke: 2.00mmRated Spring Force: 230gf (8.1oz)
Electrical Specifications (Electrical Spec.):
Frontal Static Current (Current Rating):4.00A
Contact Resistance: 100mOhmIt can be applied to products of electronic consumption categories such as Apple Magsafe Power Bank sports camera recorder, electric toothbrush, car navigator, etc
