SWP165
SWP165 Series
ProductParameters
Materials & Plated:
Needle 1 (Plunger): BeCu, Au on Ni PlatedNeedle Tube (Barrel): Brass, Au on Ni PlatedNeedle 2 (Plunger): BeCu, Au on Ni Plated
Part: PTFE
Spring (Spring): SWP, Au on Ni Plated
Electrical Specifications (Electrical Spec):
Frontal Static Current (Current Rating): 17A (30s)/10A (300s)
Contact Resistance: 160 mil ohms
Technical Specifications:
Full Stroke: 5.0 mm
Rated Stroke: 3.3 mm
Rated Spring Force (Spring Force): 100 gf @ load 3.3 mm
Normality Condition: Pin 1,2 Open
Press Down: Pin Rod 1,2 Conductive (Press Down 1.5mm)
Product
ntroductionequpent automaton fields. er prout standards and regquiremens eced tose ofoter sees test pins.pes of haes pinstreaded nonthreaded harness pins, harness switch pins, harness – high-current pins, etc. -

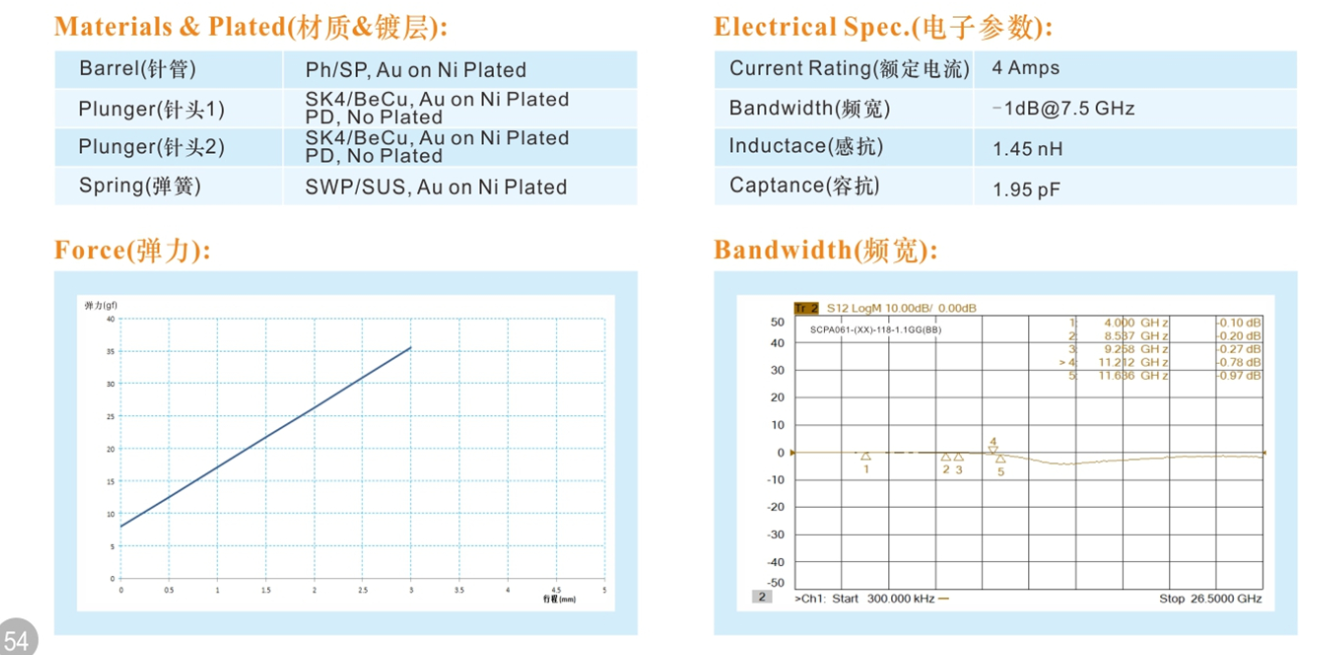

SCPA016
Ni Plated
Needle 1 (Plunger): SK4 / Becu, Auon Ni Plated; PD, No PlatedNeedle 2 (Plunger): SK4 / Becu, Auon Ni Plated; PD, No PlatedSpring (Spring): SWP / SUS, Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 4 Amps
Bandwidth: -1 dB @ 7.5 GHz
Inductace (Inductace): 1.45 nH
Capacitance (Captance):1.95 pF
ProductIntroduction

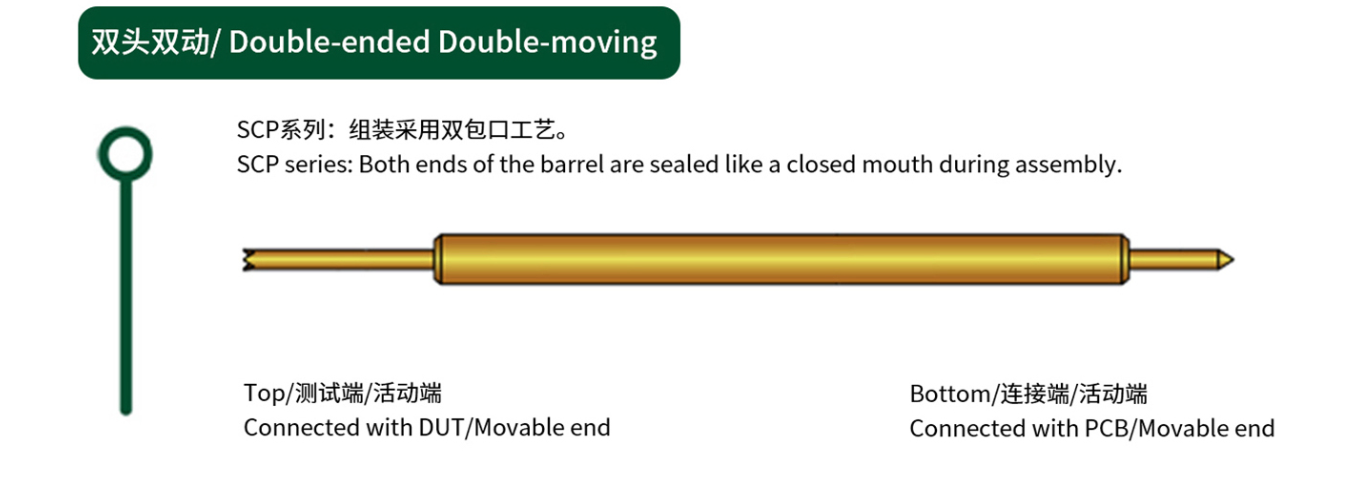

olume and nighest acura requremens. structural ided inte: dua head – singe -acion probe, dual head – double- action probe seles.
Mainly used for extremely low contact resistance and ultra-high bandwidth in various communikcation power electronic components, semiconductorwafer testing, chip packaging testing, etc, meeting the requirements for high-frequency signal testing at 5-40G.
Currently, Xindeli can process small probe diameter: head: 0.06mm /needle tube p: 0.10mm.
-
megnetic charging cable
BIP170 Series
ProductParameters
Materials & Plated:
Plunger: BeCu, Au Plated Copper, Gold PlatingBarrel: PH, Au Plated Phosphor Bronze, Gold Plated
Spring: SWP, Au Plated Wire, Gold Plating
Mechanical Specifications (Recommended):Center Distance (Centers): 3.20mm (125mil)
Full Stroke: 3.50mmRated Stroke: 2.00mmRated Spring Force: 230gf (8.1oz)
Electrical Specifications (Electrical Spec.):
Frontal Static Current (Current Rating):4.00A
Contact Resistance: 100mOhmIt can be applied to products of electronic consumption categories such as Apple Magsafe Power Bank sports camera recorder, electric toothbrush, car navigator, etc
-
6 pin Pogo Pin White Magnetic Charging Data USB C Charger Cable Type C
The Pogo pin is designed to deliver exceptional waterproof capabilities, ensuring reliable performance even in challenging conditions. It features a magnetic charging cable and is equipped with specialized plating that effectively prevents human skin allergies and safeguards against sweat corrosion. This configuration offers a fast and convenient charging solution for smartwatch bracelets, enhancing their overall user experience.
-
2 pin Pogo Pin Black Charger Magnetic USB Charging Cable
The Pogo pin is designed to deliver exceptional waterproof capabilities, ensuring reliable performance even in challenging conditions. It features a magnetic charging cable and is equipped with specialized plating that effectively prevents human skin allergies and safeguards against sweat corrosion. This configuration offers a fast and convenient charging solution for smartwatch bracelets, enhancing their overall user experience.
-
2 pin White Magnetic USB Charging Cable
The Pogo pin is designed to deliver exceptional waterproof capabilities, ensuring reliable performance even in challenging conditions. It features a magnetic charging cable and is equipped with specialized plating that effectively prevents human skin allergies and safeguards against sweat corrosion. This configuration offers a fast and convenient charging solution for smartwatch bracelets, enhancing their overall user experience.
-
5 pin Pogo Pin Black Magnetic Charging Data USB C Charger Cable
The Pogo pin is designed to deliver exceptional waterproof capabilities, ensuring reliable performance even in challenging conditions. It features a magnetic charging cable and is equipped with specialized plating that effectively prevents human skin allergies and safeguards against sweat corrosion. This configuration offers a fast and convenient charging solution for smartwatch bracelets, enhancing their overall user experience.
-
4 pin Pogo Pin Black Magnetic Charging Data USB Charger Cable
The Pogo pin is designed to deliver exceptional waterproof capabilities, ensuring reliable performance even in challenging conditions. It features a magnetic charging cable and is equipped with specialized plating that effectively prevents human skin allergies and safeguards against sweat corrosion. This configuration offers a fast and convenient charging solution for smartwatch bracelets, enhancing their overall user experience.
-
2 pin USB Magnetic Charging cable
The Pogo pin is designed to deliver exceptional waterproof capabilities, ensuring reliable performance even in challenging conditions. It features a magnetic charging cable and is equipped with specialized plating that effectively prevents human skin allergies and safeguards against sweat corrosion. This configuration offers a fast and convenient charging solution for smartwatch bracelets, enhancing their overall user experience.
-
2 pin Pogo Pin Black Magnetic Data USB Charger Cable
The Pogo pin is designed to deliver exceptional waterproof capabilities, ensuring reliable performance even in challenging conditions. It features a magnetic charging cable and is equipped with specialized plating that effectively prevents human skin allergies and safeguards against sweat corrosion. This configuration offers a fast and convenient charging solution for smartwatch bracelets, enhancing their overall user experience.
