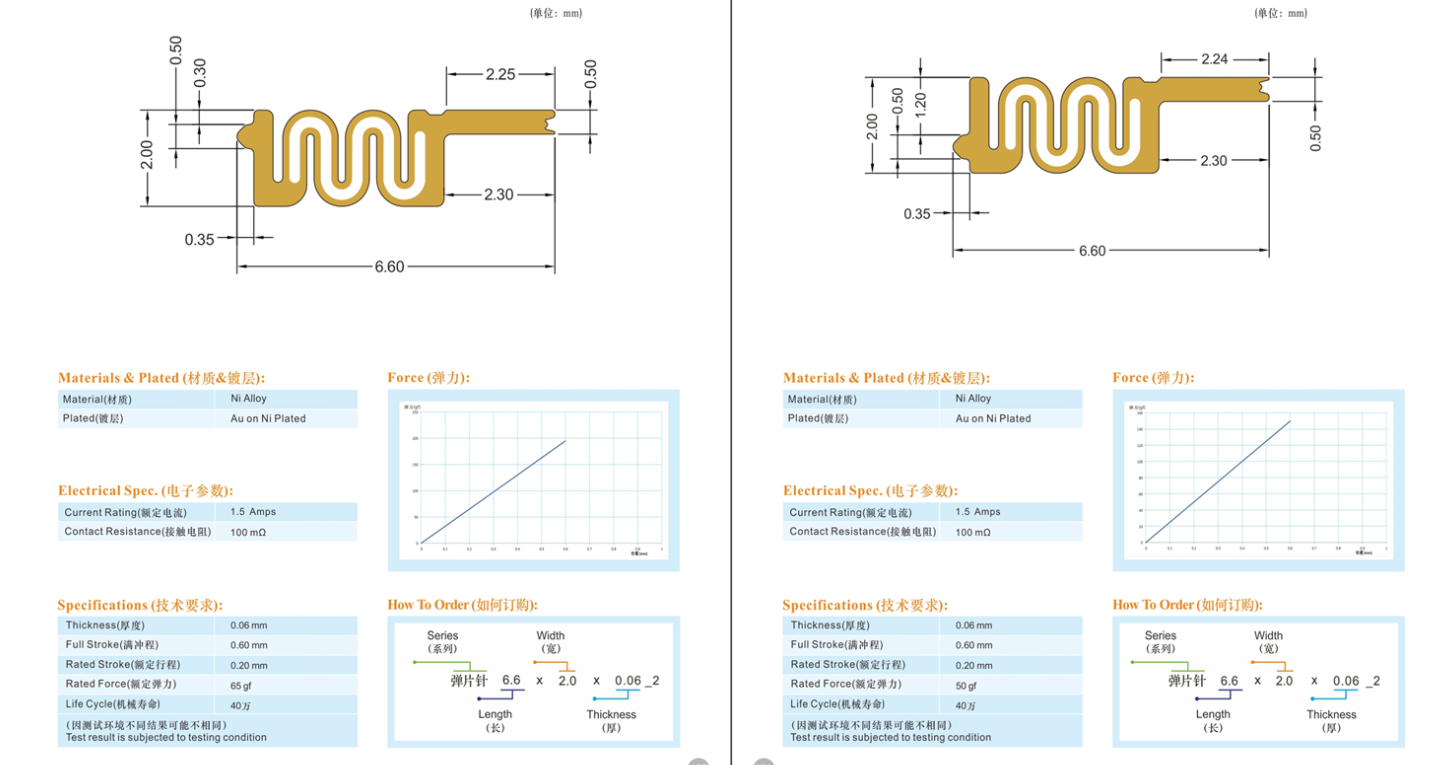

Series 6.60×2.0×0.06
Short Description:
Series 6.60×2.0×0.06
ProductParameters
Materials & Plated:
Material (Material): Ni Alloy
Coating layer (Plated): Au on Ni Plated
Electrical Specifications:
Frontal Static Current (Current Rating): 1.5 Amps
Contact Resistance: 100 mO
Technical Specifications:
Thickness (Thickness):0.06 mm
Full Stroke: 0.60 mmRated Stroke: 0.20 mmRated Force: 50/65 gfLife Cycle: 400,000 cycles
ProductIntroduction The spring test pin sabreviated as “spring nedle” or “blad nedle” thas characteristics such as being ableto hande smaller pitch, high testeffciency. high stablty,and ong ifespan,serving to transmitsignalsand conduct curent.t is mainly used for testing precision spacing connectors such asmoble phoneschips, and screens.
